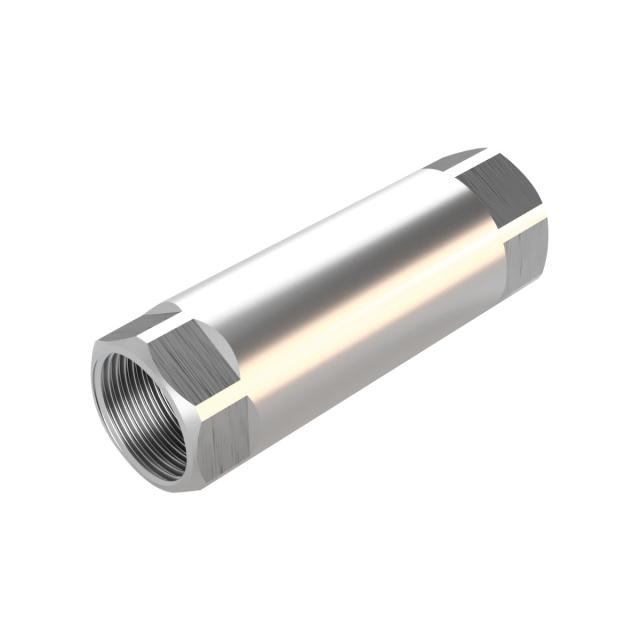

Inline Filter 3/4

Temperature filters are specially designed for cooling channels or core cooling channels. The filter  cartridge removes dirt particles, rust, or scale deposits.

The temperature filter is made of stainless steel and brass.

Easy maintenance of the filter:

1. Separate the 2 housing parts
2. Clean filter in an ultrasonic bath
3. Re-assemble the 2 housing parts

Technical data:

Pressure loss: 10-15%

Operating temperature: Max 140°C

Max pressure: 8 bar

Pore size (filter): 100 µm

Material: Stainless steel

Seals: Viton (FKM)
