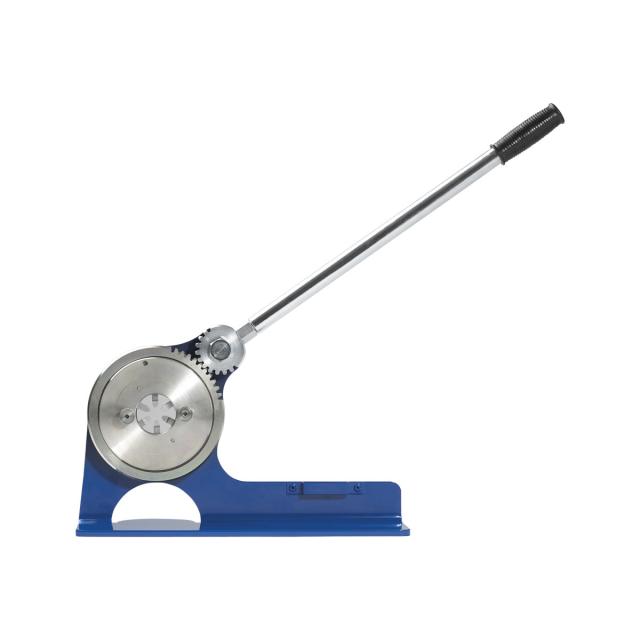

Crimp Machine

Bench mounted crimp machine perfect for creating low pressure hose assemblies ideal for mould cooling circuits. The hand operated machine does not require any power or compressed air during operation.

It is possible to create professional hose assemblies on-site in seconds using standard hosetail couplings.

Suitable for all hose types it is possible to create pvc, nbr, rubber and silicon braided hose assemblies and by using a correctly sized stainless steel ferrule it is suitable for 10mm (3/8”), 13mm (1/2) and 19mm (3/4) hose.

The ferrule is placed on the outside of the hose and the hose pushed onto the hosetail; the assembly is then placed into the jaws of the crimp machine. The lever is manually pushed down which closes the jaws and creates a professional crimp in seconds.

The crimper is supplied with two sets of jaws; one for hoses DN 3 to 8; one for hoses DN 10 to 16 with a crimp range: 10-36 mm.

For ease of use the crimp machine should be bolted down or clamped to a flat surface.

• Fast effective crimps
• Ideal for water circuits
• Suitable for up to 3/4 hose
• Professional crimp created in seconds
