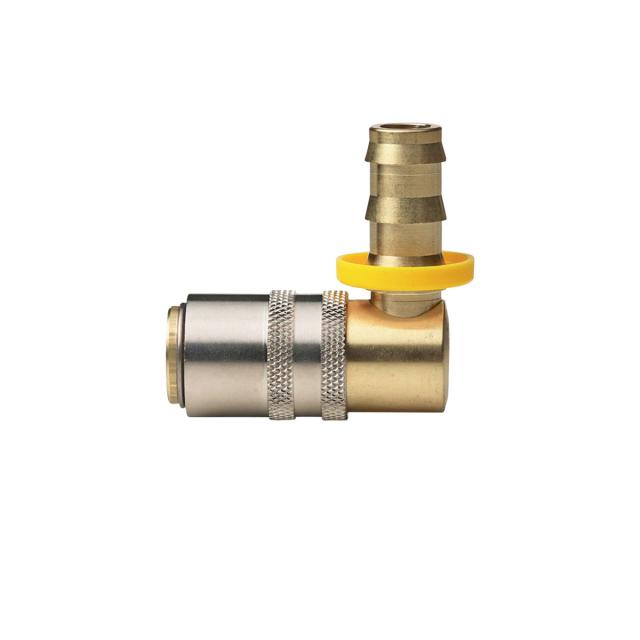

Coupler Push Lock, 90°

Push Lock Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs.

Coupling hose tail designed to lock the hose without use of hose clamp

15 bar, maximum static working pressure with safety factor of 4 to 1

Working Temperature

Standard Couplers: Water -15°C up to +140°C, Oil -15°C up to +180°C

Note: Without Hose Clamp: Water max 90°C
